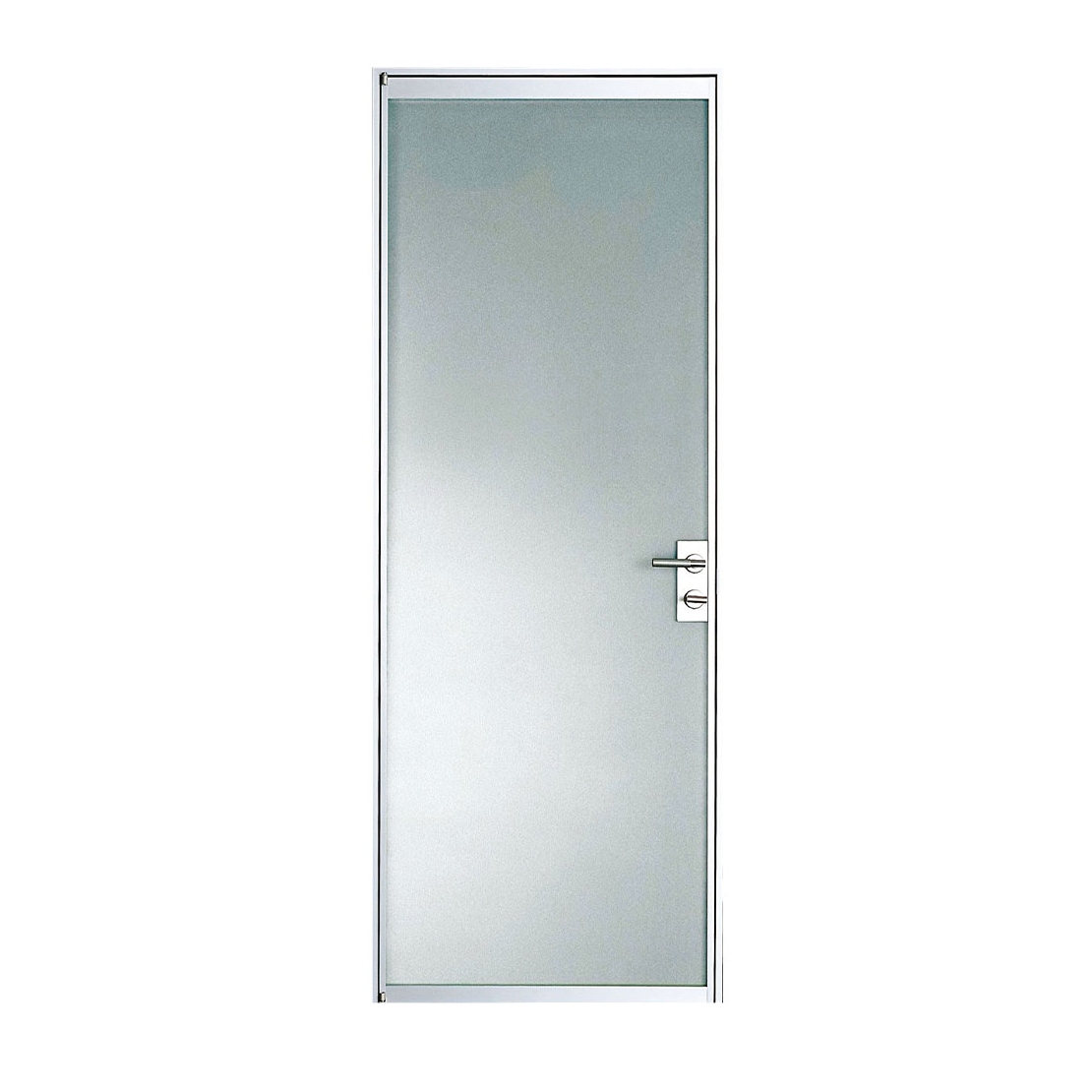

TRE+ PLANUS 03 DOOR
TRE+ PLANUS 03 DOOR
Planus Tre, natural extension of the Pavilion system, is an autonomous program characterized by perfectly integrated hinged doors, thanks to a false walled concealed frame. The swing door, perfectly flush with the wall on the pull side, is complete with an aluminum jamb and a dedicated metal subframe, both telescopic, for masonry or plasterboard walls.
TECHNICAL FILE
TECHNIQUE
Flush-to-wall pull-side door complete with dedicated metal subframe for masonry or plasterboard walls. Hinged door thickness 42 mm solid honeycomb or in glass with aluminum profiles and 6 mm tempered or laminated safety glass. Square section stop. Telescopic aluminum jamb from 85 to 125 mm to be walled in, plastic gasket, patented hinges, mechanical lock with provision for handle only, privacy latch or cylinder with key.
Finishes available for Polyurethane Matt Lacquered panel: colors from our range and Ral colors
Polyester Gloss Lacquer: colors from our range and Ral Essenza colors
Sculpture: finishes from our range
Essence: finishes from our range
Fossil Wood: finishes from our range
Laminates: finishes from our range
Crystals: finishes from our range
Leather: finishes from our range
Raw base coat
Available finishes for jamb profiles Profiles: Natural anodised aluminum, Brushed steel, Bright steel
